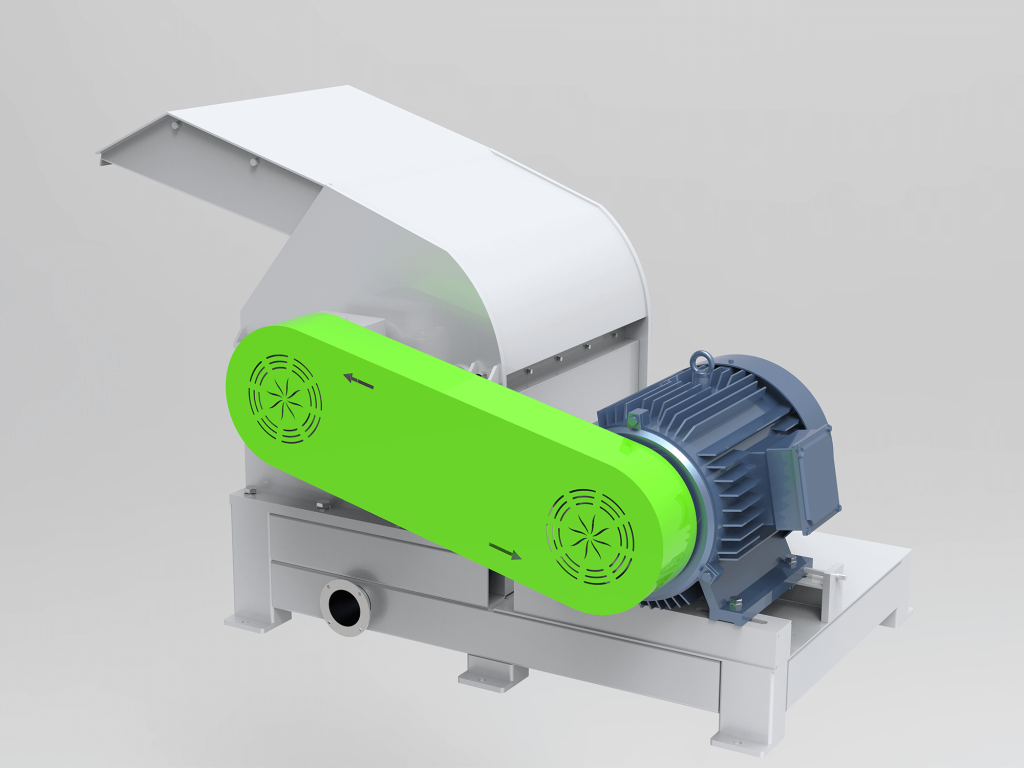

Crushing and Grinding Machine Model-PSM-1050

PSM-1050 is suitable for processing: PVC wall panels, integrated wallboards, gusset plates, PVC flooring, foam boards, and other rigid PVC/SPC/WPC sheets.

  • Capacity: 600-850kg/h
  • Cooling System: Intelligent air-water dual cooling
  • Material Contact Parts: Hardened alloy steel
  • Ensure the equipment operates durably and stably, and say goodbye to the troubles of high-temperature shutdowns.
Get A Free Quote

Video

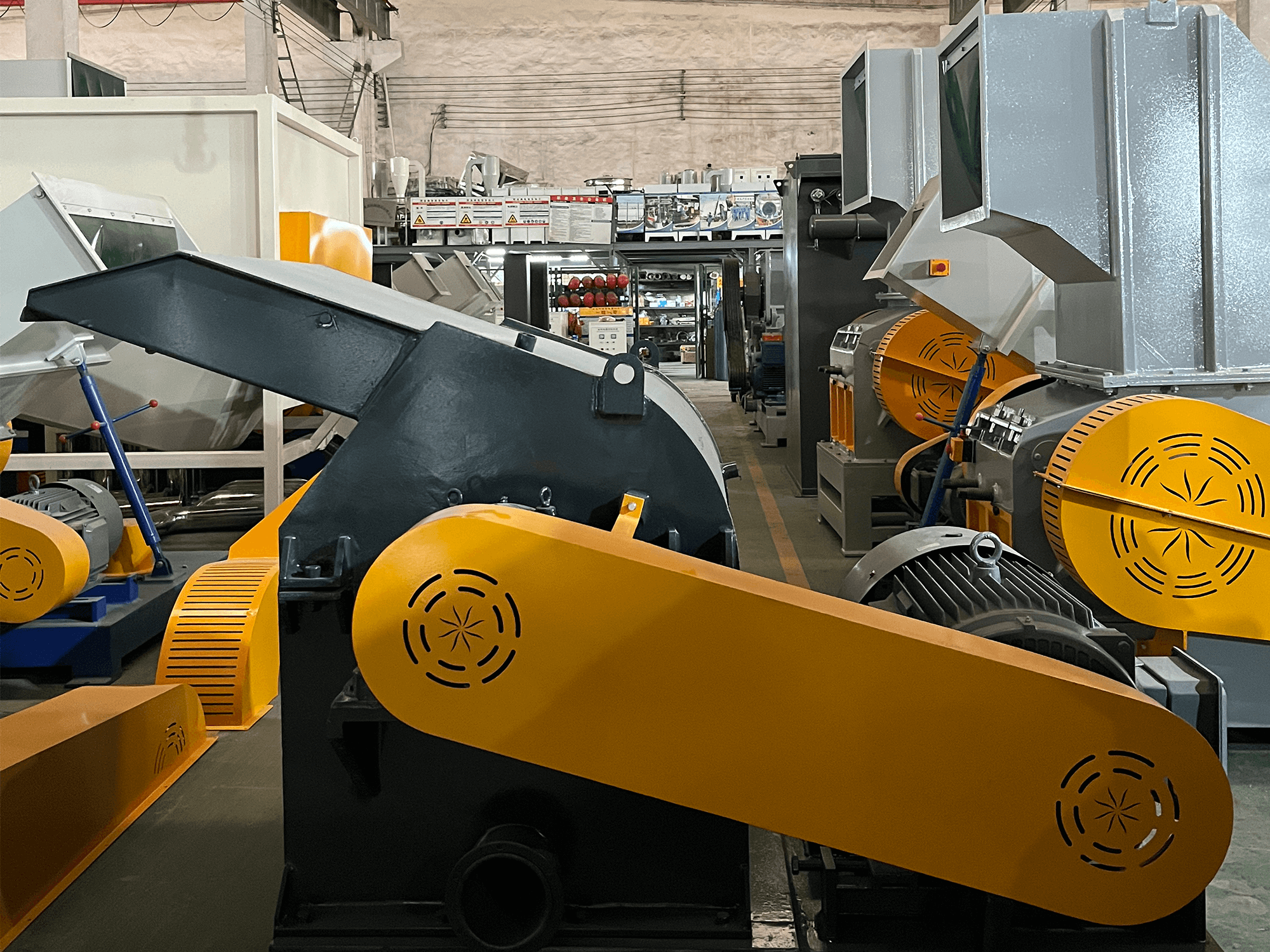

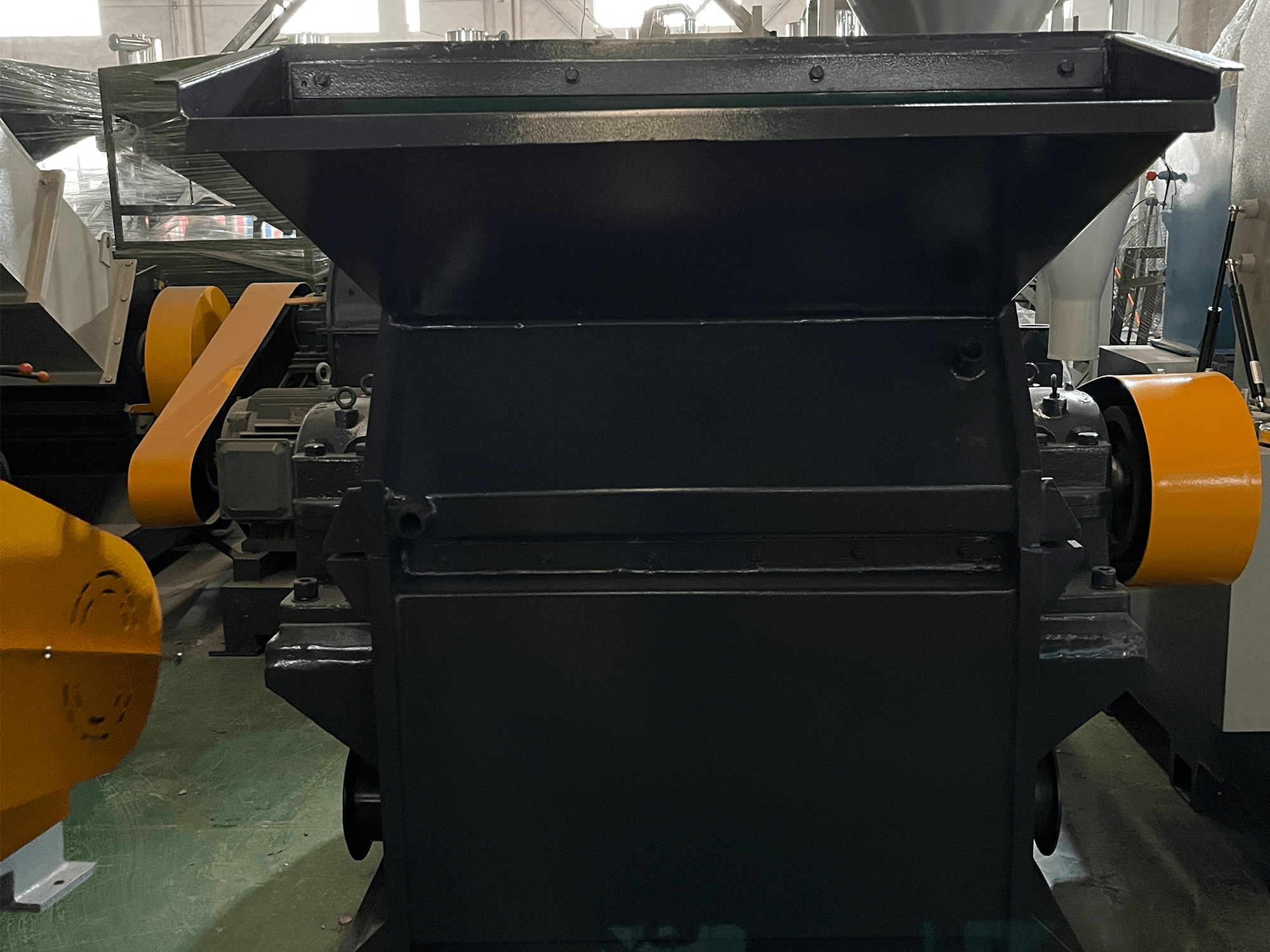

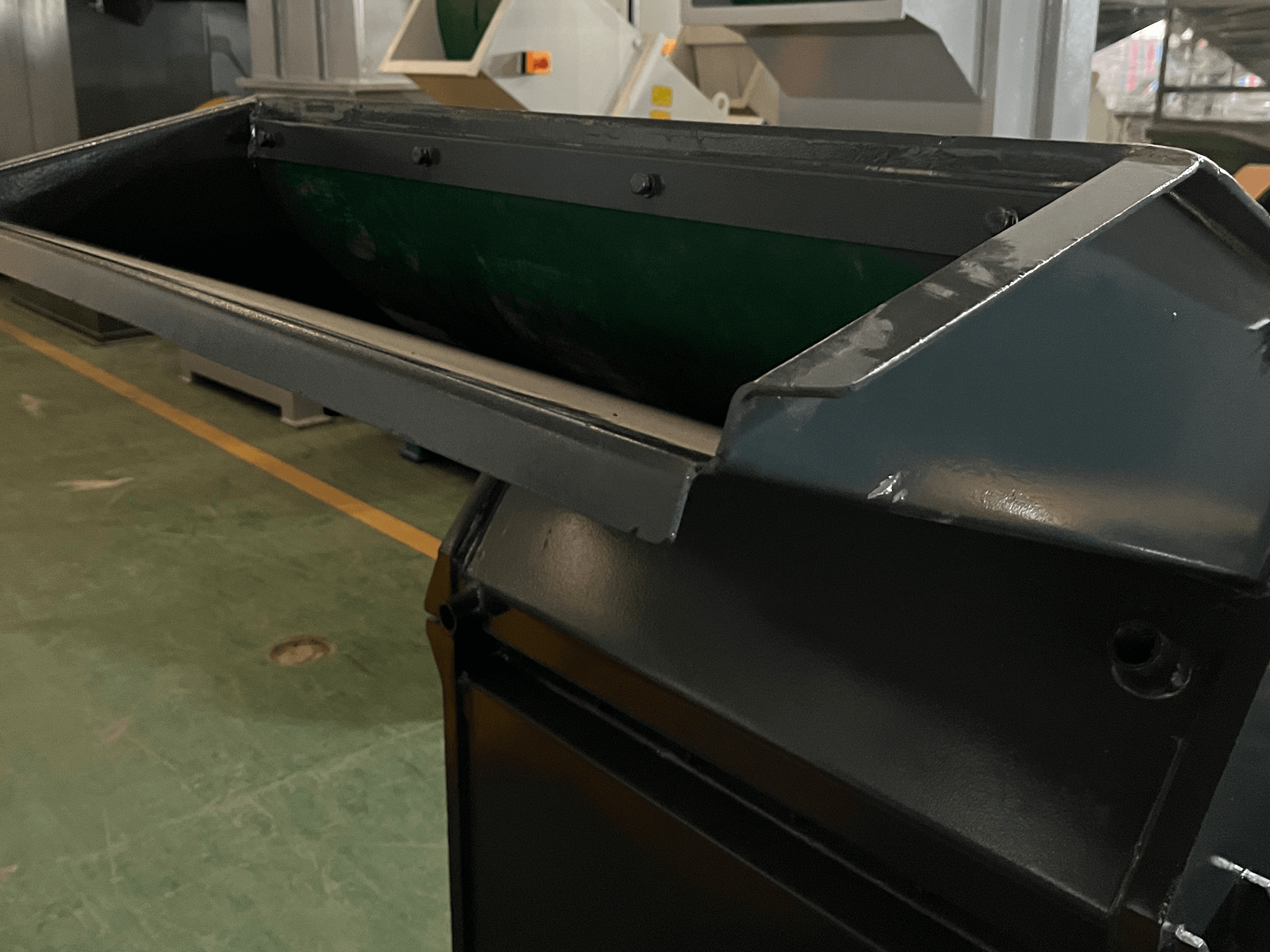

Detailed Images

Feature

  • All-in-One Processing – Integrates crushing and grinding into a single step, eliminating intermediate handling for streamlined production.
  •  Precision Cutting System – Features imported high-precision spindle bearings and dynamic blade alignment for consistent particle size reduction.
  • Temperature-Controlled Operation – Patented air-water cooling technology prevents material degradation during processing.
  • Zero-Dust Closed Design – Fully sealed construction with quick-access maintenance doors ensures dust-free operation and easy servicing.
  • Energy-Efficient Performance – Optimized motor and cutting geometry reduce power consumption by 15-20% versus conventional systems.



Crushing and Grinding Machine Model-PSM-1050 Parameter

No Item Name Specification
1 Model PSM-1050
2 Rotary diameter 670mm
3 Effective width of shaft 1000mm
4 Number of rotary blades 108 pices
5 Rotary speed 2500rpm
6 Number of rotating blades sets 6 groups
7 Capacity 600-850㎏/h
8 Screen size 4mm
9 Feeding port diameter 1030mmL×260mmW
10 Main motor power 90KW
11 Housing plate thickness 25mm A3 steel plate
12 Bearing 2320
13 Hopper plate thickness 6mm
14 Blade thickness 10mm
15 Cutter thickness 12mm
16 Feed port Two curtains
17 Sealing element TTO
18 Main machine weight 2800kg
19 Machine dimension 2000X1650X1600
20 Suction fan Stainless steel 159mm
21 Pusher 0.75KW
22 External dimension 100mm*100mm*90mm
23 Suction pipe Stainless steel 159mm
24 Electrical control system CS-1000
25 Contactor Schneider
26 Starting mode Frequency changer
27 Storage bin 2T
28 Storage bin requirement 1800*1800*3000
29 Blanking capacity 7L
30 Feeding material close fan 1.5KW
31 Bag dust collector 9 pices
