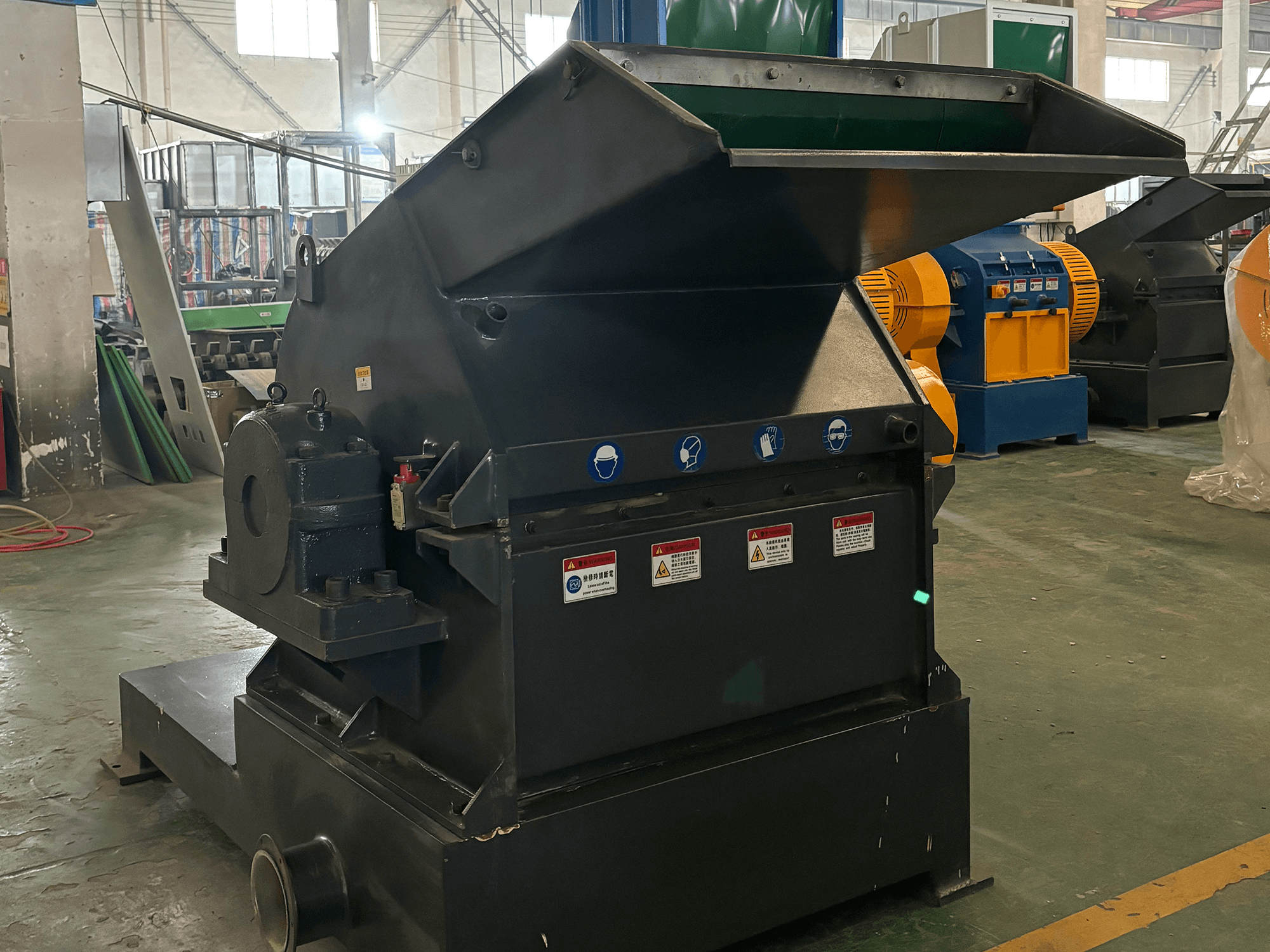

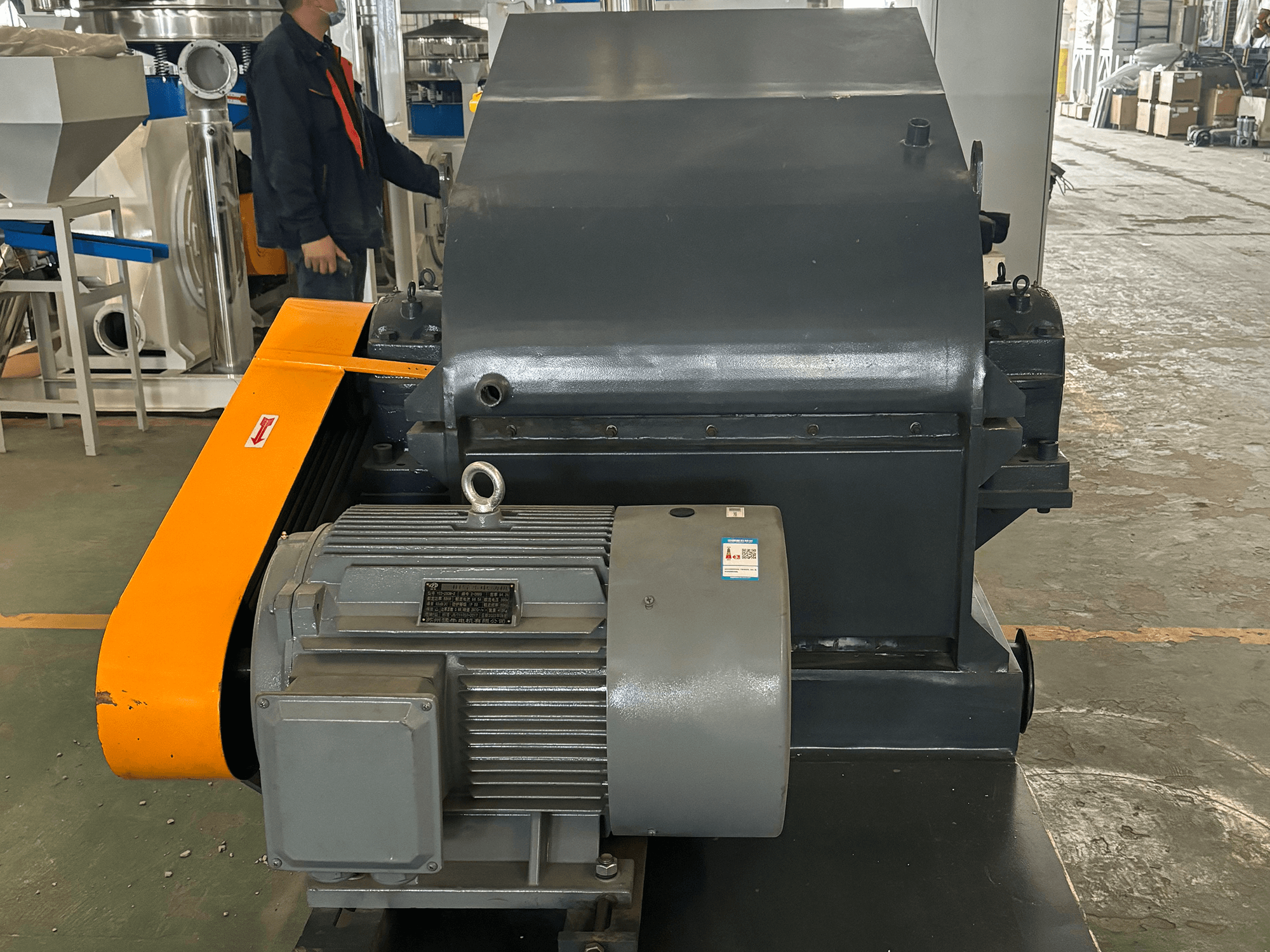

Crushing and Grinding Machine Model-PSM-850

Crushing and Grinding Machine Model-PSM-850 for wallboard and flooring manufacturers seeking faster, more efficient material processing.

All-in-one crushing & grinding
High efficiency for rigid plastic boards
Simplifies recycling of PVC/SPC/WPC waste
colour：can be customized
main motor power ：75kw
Choose the PSM-850 integrated crushing and grinding machine, making the processing of sheet materials more efficient and resource recycling easier

Video

Designed for PVC wall panels, integrated boards, flooring, foam boards, and rigid PVC/SPC/WPC materials, this machine combines crushing and grinding in one step, eliminating the need for separate processing.
Precision spindle drive with imported bearings for high-speed cutting
Combined crushing & grinding in one step, producing fine powder
Air-water cooling prevents overheating & material degradation
Fully enclosed design – no dust leakage, easy maintenance via side door
Efficient, dust-free, and temperature-controlled processing

No	Item Name	Specification
1	Model	PSM-850
2	Rotary diameter	670mm
3	Effective spindle width	850mm
4	Number of rotary blades	84 pices
5	Rotating tool shaft speed	2500rpm
6	Number of rotating blades sets	6 groups
7	Capacity	400-650㎏/h
8	Mesh size	4mm
9	Feeding port diameter	830mmL×260mmW
10	Main motor power	75KW
11	Housing plate thickness	25mm A3 steel plate
12	Bearing	2320
13	Hopper plate thickness	6mm
14	Blade thickness	10mm
15	Cutter thickness	12mm
16	Feeding port	Two curtains
17	Sealing element	TTO
18	Main machine weight	3200kg
