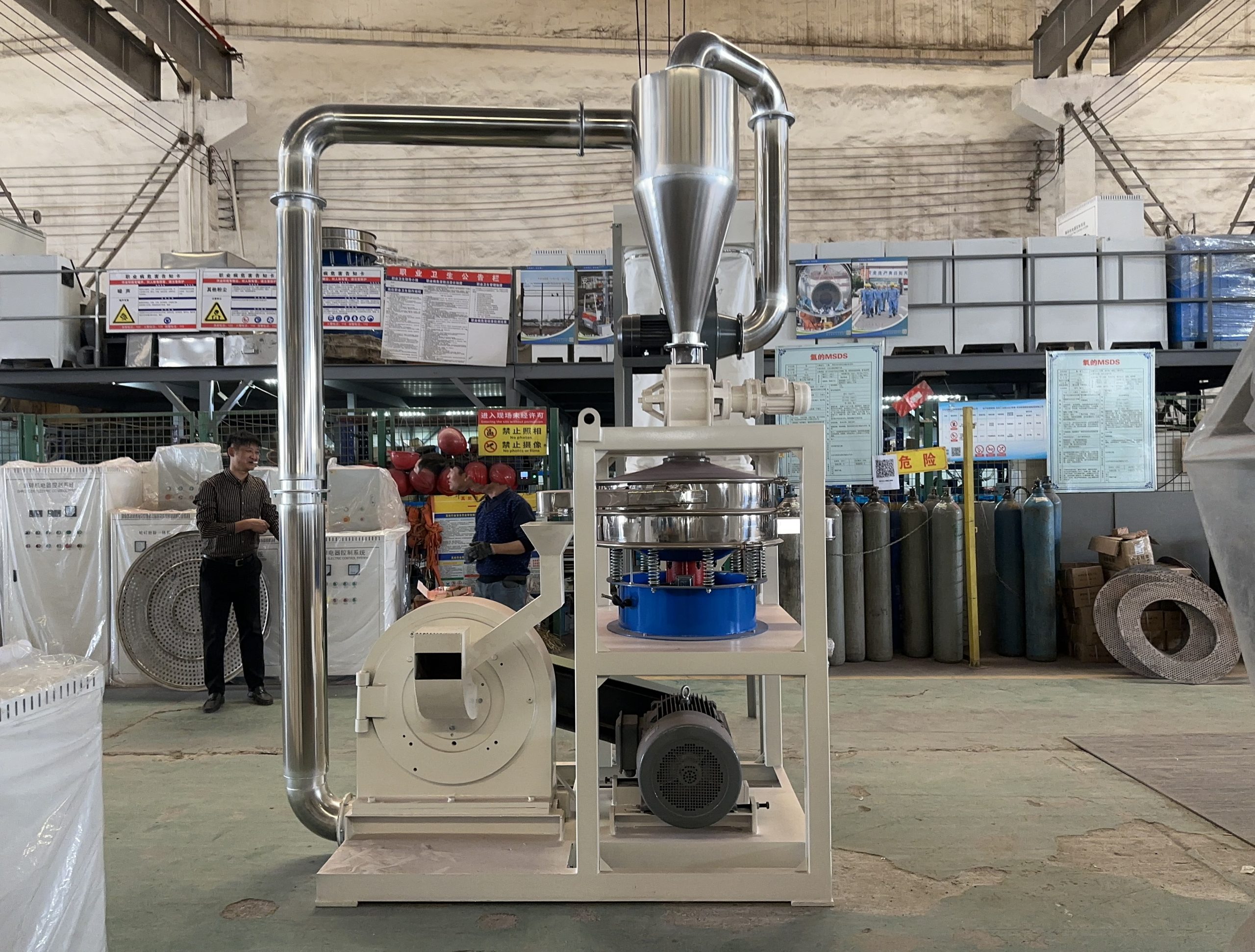

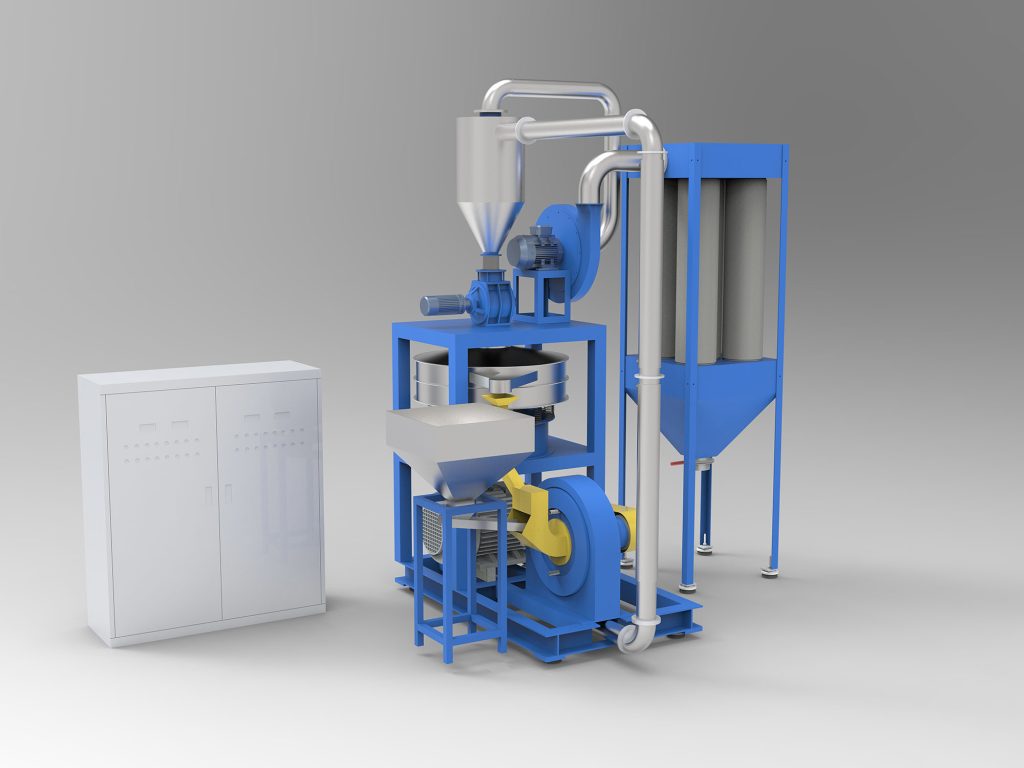

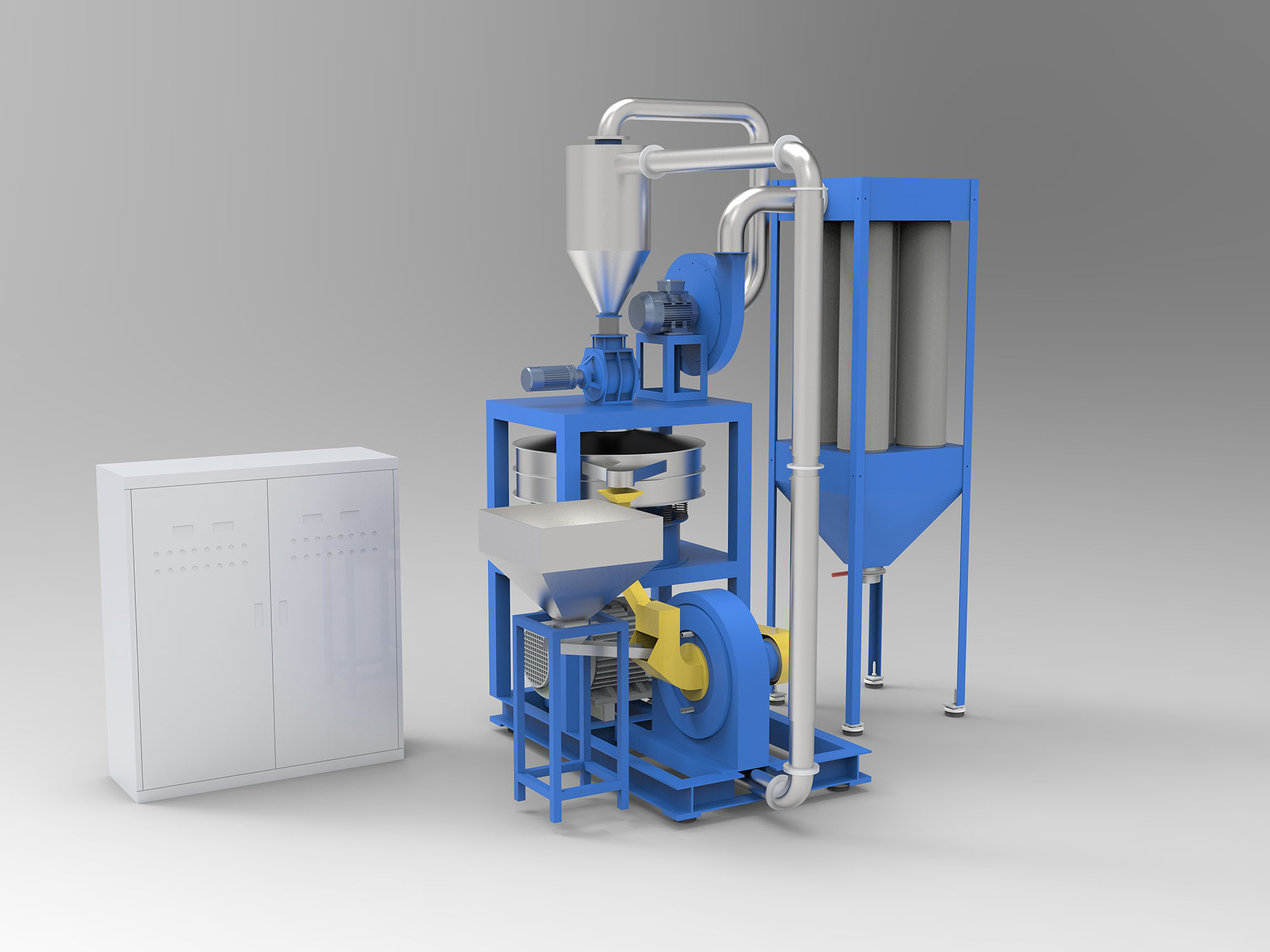

Disk Miller－MF-800

MF—800 Series Disk Grinders are optimized for medium-hard plastic granules:

Engineered for efficient processing of PE, PVC, PP, ABS
Suitable for PA, EVA, PET, PS engineering plastics
Handles PPS, EPS, PC and similar polymer materials
Voltage/colour：can be customized
Suitable for grinding and recycling various materials with moderate hardness, good impact resistance and prone to fragmentation.

Video

Precision grinding of impact-resistant materials
Uniform particle size output
Low heat generation design
The equipment features a newly engineered grinding disc design, which not only enhances production efficiency but also delivers exceptional wear resistance and extended service life. By incorporating newly designed bearings, it achieves high rotational speeds while ensuring effortless installation and maintenance. The machine is equipped with a removable door cover for convenient cleaning, and its fully sealed grinding chamber eliminates dust leakage, prioritizing operational safety and environmental friendliness.
Designed for full automation, the system integrates automatic feeding, back grinding, discharging, and sorting functions, streamlining the entire process. The grinding gap can be easily adjusted with precision using a feeler gauge and adjusting bolts, offering flexibility for different material requirements.
The main engine cooling system employs a dual-mode wind-and-water combined cooling mechanism, ensuring stable performance even during prolonged high-load operation. To meet diverse customer needs, the equipment supports non-standard customization for both materials and models, providing tailored solutions for specific production demands. This combination of innovative design, high efficiency, and customizable features makes it an ideal choice for various plastic processing applications.

No	Item Name	Specification
1	Model	MF-800
2	Disk diameter	Ø800mm
3	Rotational speed	3000 rpm
4	Number of blades	Fixed blades 1，rotary blades 1
5	Main motor power	90KW
6	Bearing	NSK
7	Electric machine	Lido machine
8	Fan power	7.5KW
9	Starting mode	Frequency changer
10	Electric appliance	Schneider
11	Vibrating screen diameter	Ø1200mm
12	Vibrating screen motor power	Ac 1.5KW
13	Cyclone butterfly valve motor power	Ac 2.2KW
14	The feeder turns off the fan	7L
15	Feeding mode	Iron removal feeder
16	Feed particle	12mm
17	Size of powder	10-30 mesh
18	Belt pulley	European standard
19	Dust collector	Nine cloth bags
20	Link pipe	159
21	304 pipe cooling method (two layers)	Water-cooling
22	Rack	100×100
23	Yield /H	350-600 kilograms
24	Connecting pipe	159mm stainless steel 304 stainless steel
25	Voltage	380V 50HZ 3 phases
26	Equipment weight	3000KG

If you have more questions about our Disk Miller, you can consult our professional sales staff.
